45CPM Square Tin Can Making Machine Fully Automatic 30KW Power

Brand Name : Delicacy

Model Number : DP-84

Certification : CE

Place of Origin : CHINA

MOQ : 1

Payment Terms : Western Union, T/T, L/C

Supply Ability : 15SETS/Month

Delivery Time : 30-90

Packaging Details : Wooden Box/ Customized

Color : Customized

Automatic : Yes

Voltage : 3-phase 380V 50Hz

Condition : New

Warranty : 1 Year

After-sales service provided : Engineers available to service machinery overseas,Online support,Video technical support

Type : Tin Can Making Machine

Product name : Small Square Cans Machine

Contact Now

Square Tin Can Making Machine 45CPM For Square Can


Used for body production of small square cans, such as 1L-5L and so on. The line realizes fully automatic production and the output reaches 30CPM for mass production for square cans.

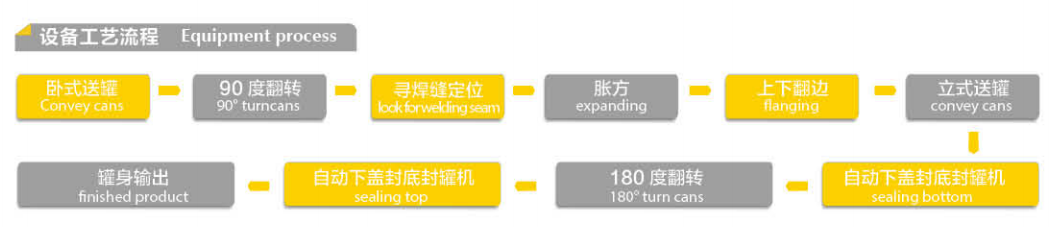

Equipment features


The line adopts purely mechanial cam transmission,cam conveying can ,cam holdind can.It runs smoothly and safely because of continuously adjustable speed and protection device of can jam. The internal and external grooved pulley design mades sure the flangingis uniform and fast, so that to ensure good seaming quality.



Main Technical Parameters



Size of machine: 2700X1700X2600mm
Auto sealing : 2000X1850X2350mm

Voltage: 380V
Production speed: 30cans/min
Dimension of whloe line: L12.5m
Power of whole line: 30KW



45CPM Square Tin Can Making Machine Fully Automatic 30KW Power



Our Services:


1. Warranty: One year after shipment.

2. Delivery Time: 15-30 working days after receiving the advanced payment.

3.Power:3 phase 4 wire, 380V, 50Hz(or according to your requirements)

4. Installation and commissioning

Before installation,we will provide machine layout drawing with dimensions, total power, single power, power interface, water &air input and output position, total water consumption. After the machines arrived and have taken seat,you must connect the water and electric and air into the machines, then we shall send 1-2 technicians to install the production line.
